The CAD Helper, a tool created by a jewelry designer with over 25 years of experience in custom design. As CAD becomes more essential in the design process, many CAD professionals work remotely or aren’t always available. The CAD Helper helps bridge that gap—making it easier to measure, communicate, and complete designs efficiently.

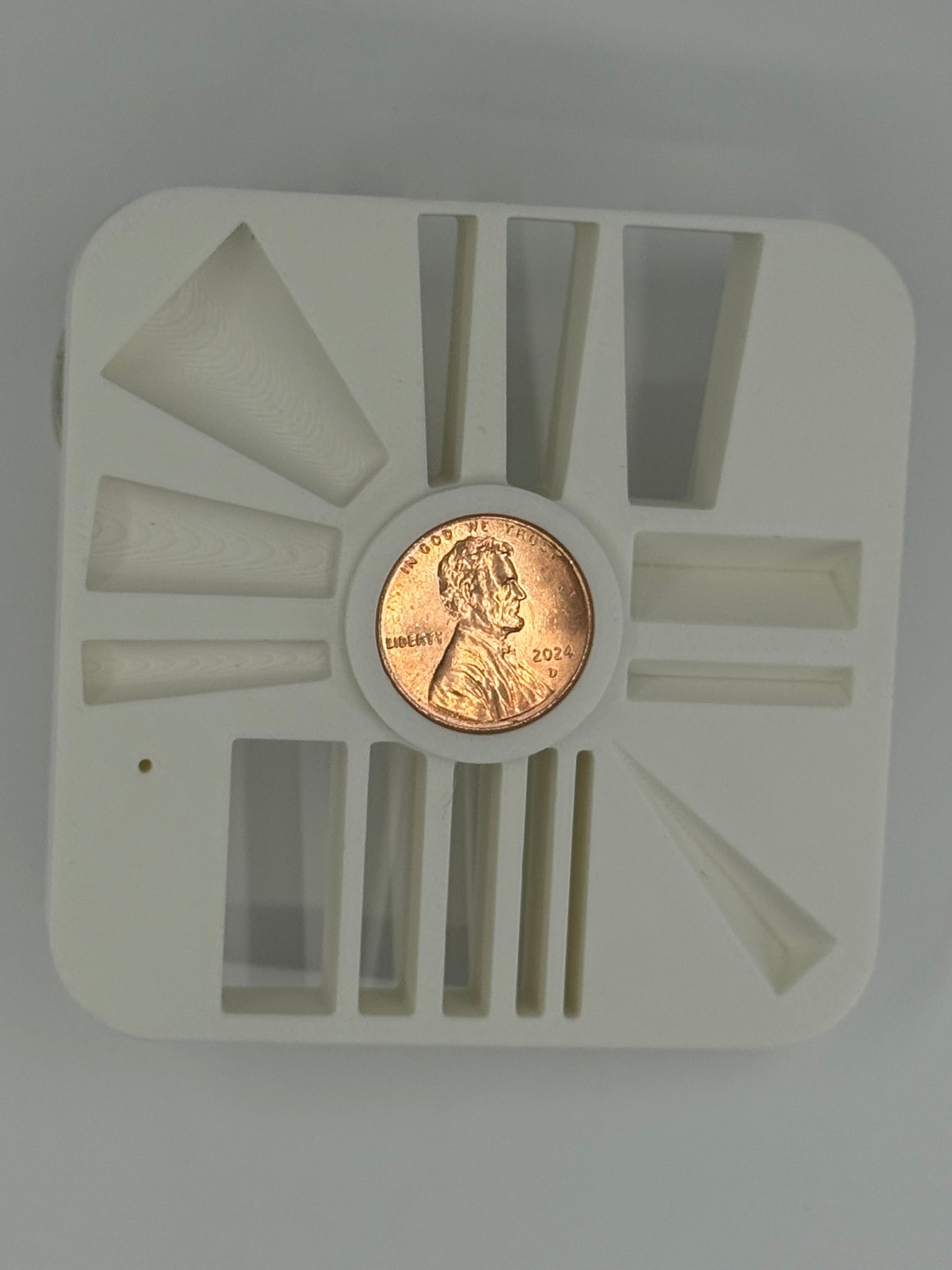

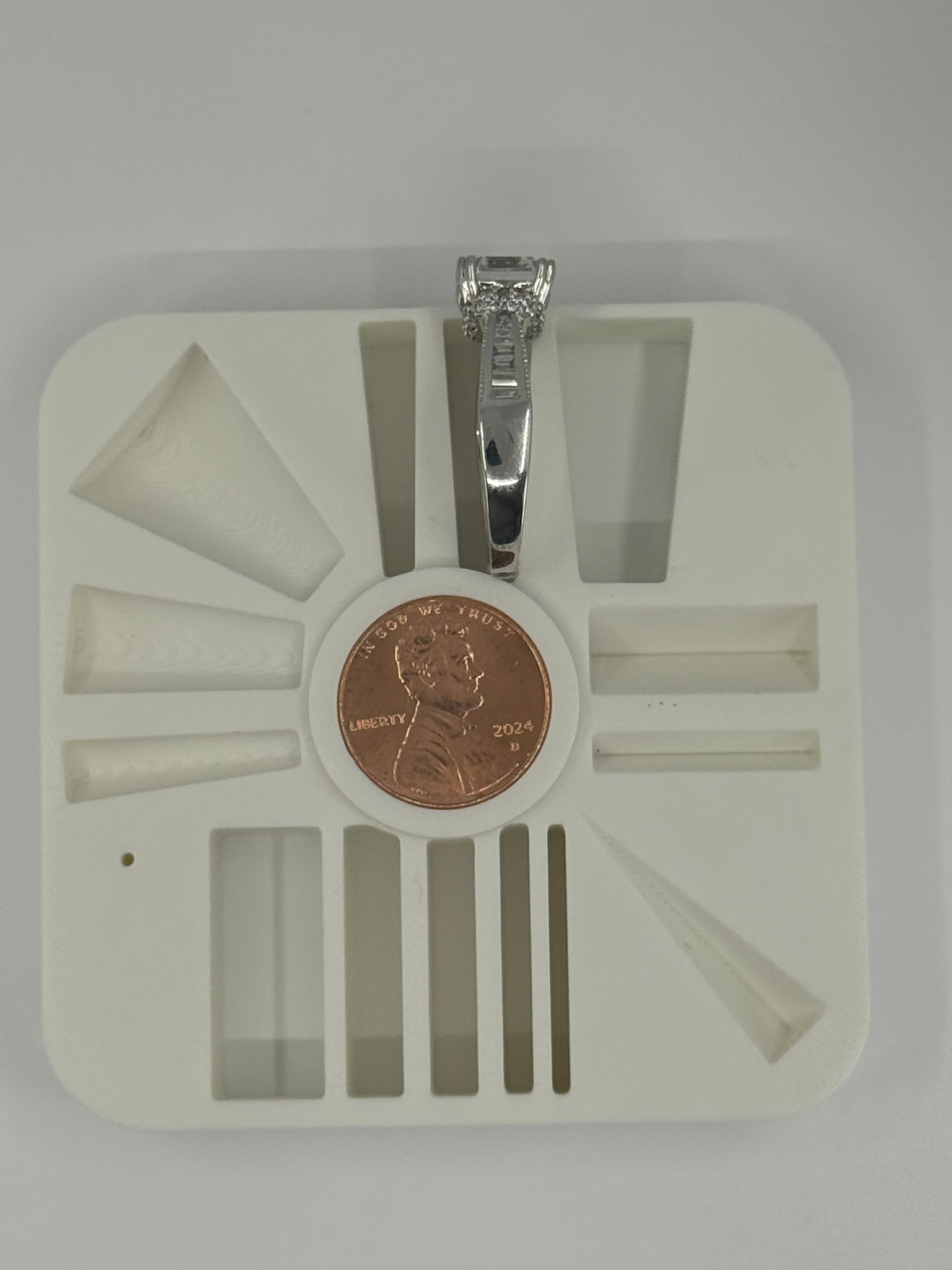

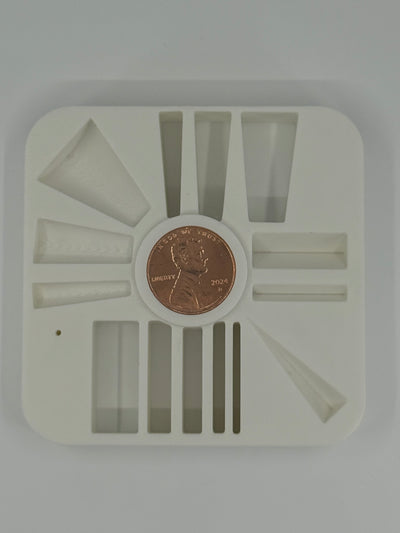

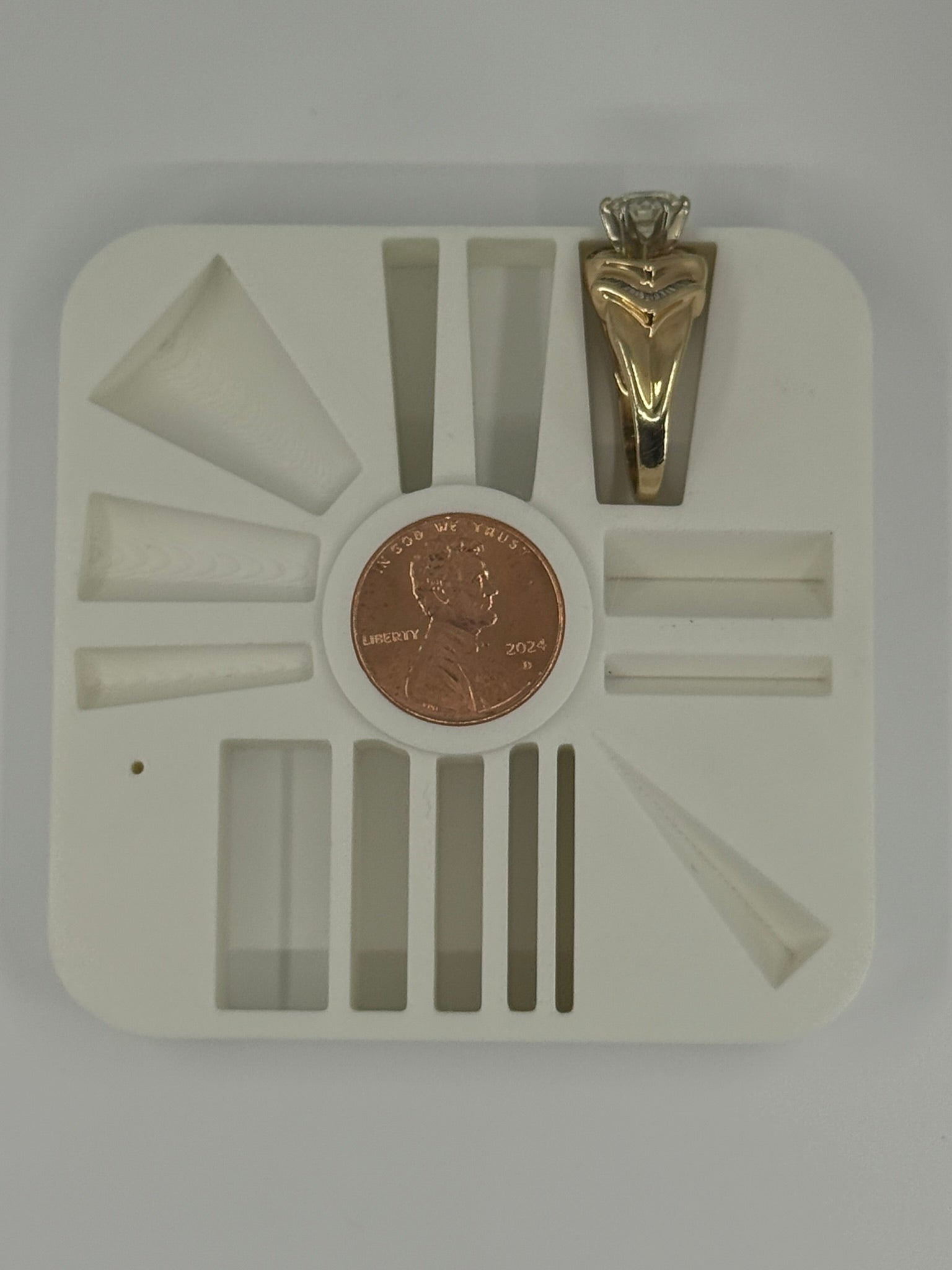

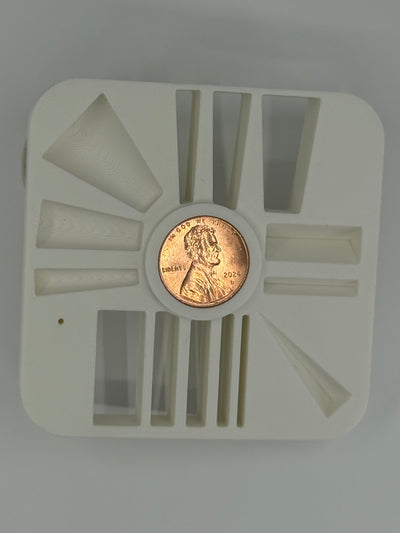

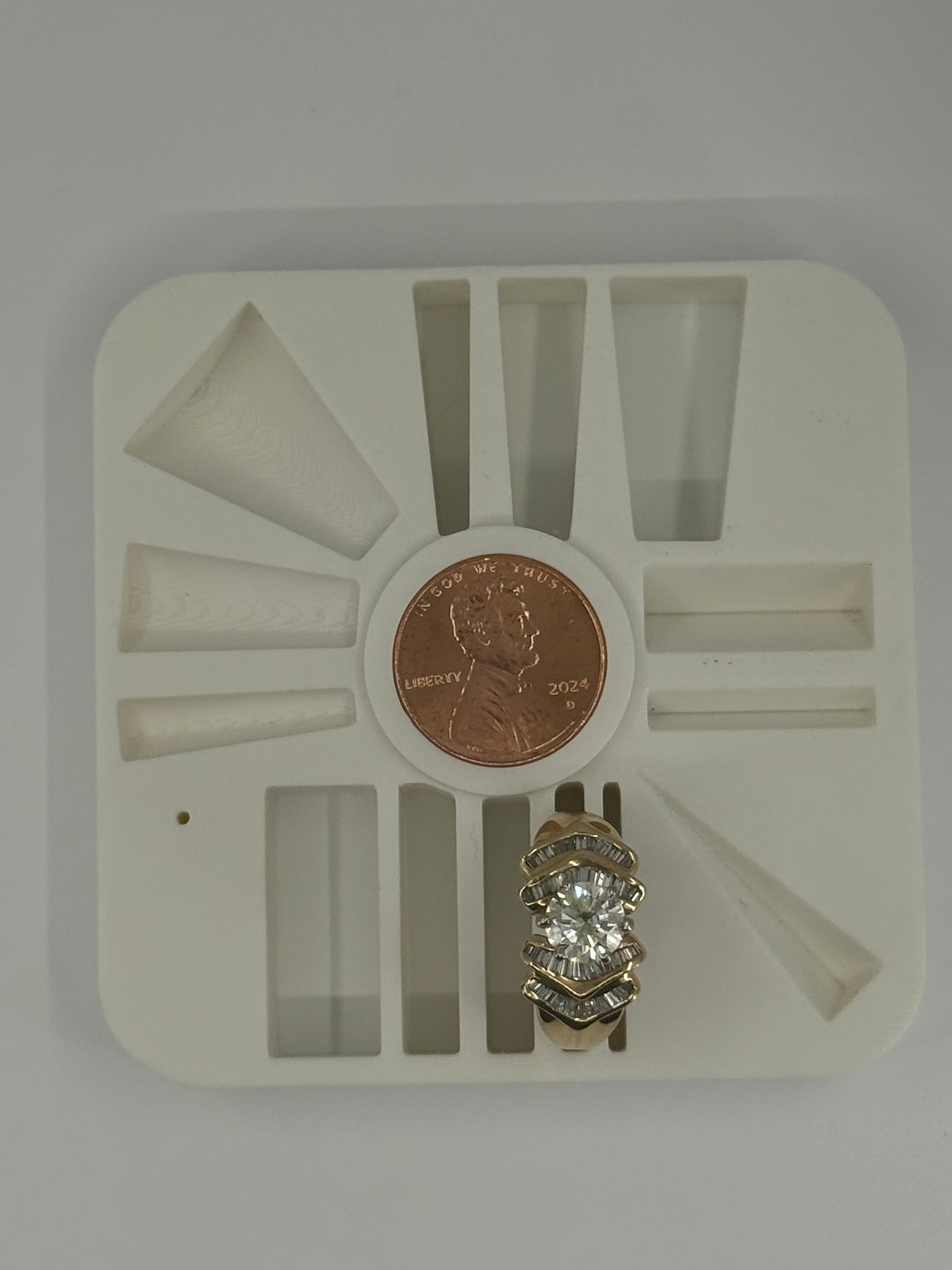

The tool features multiple slots and grooves to help lay out items securely and consistently.

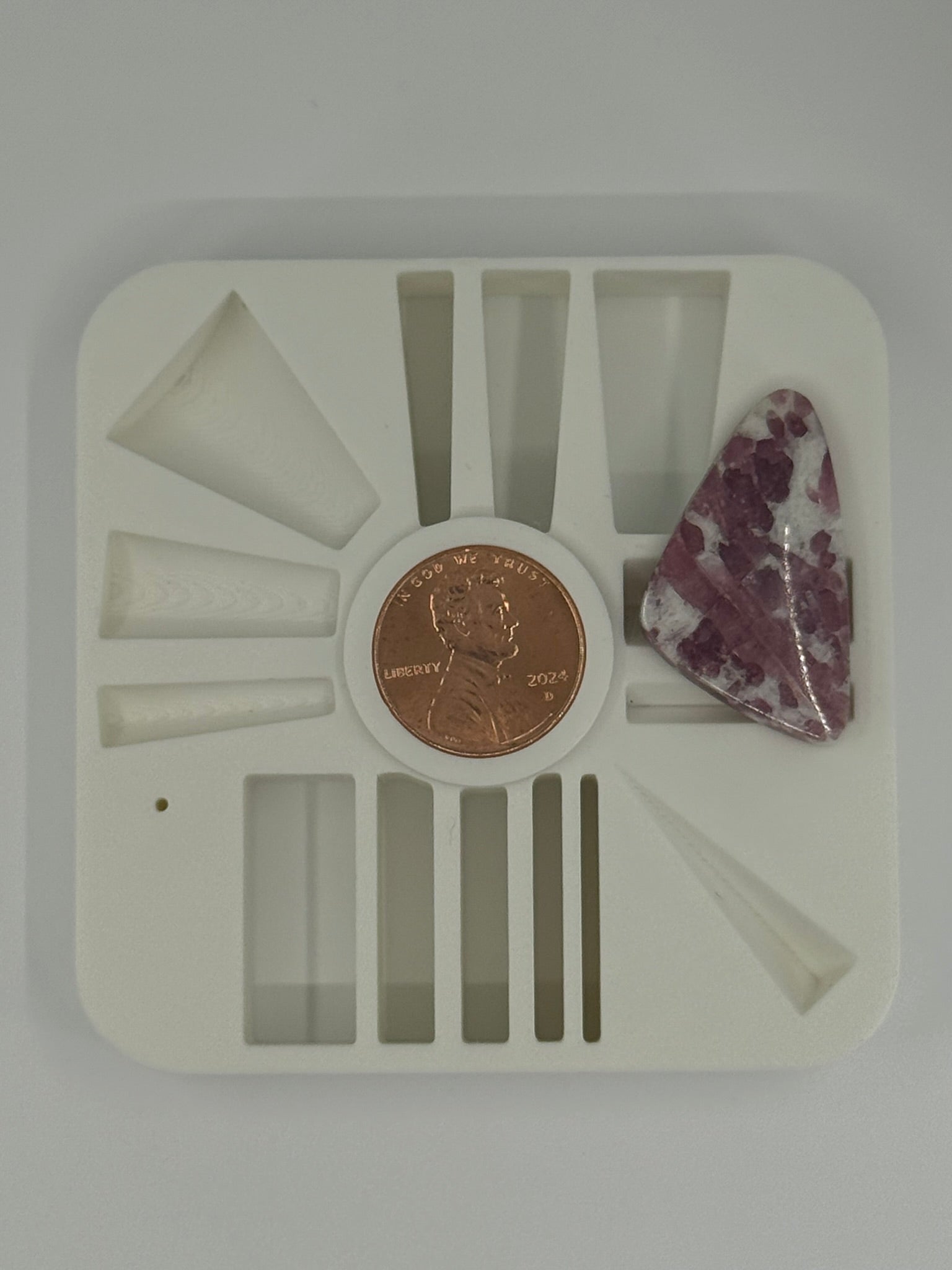

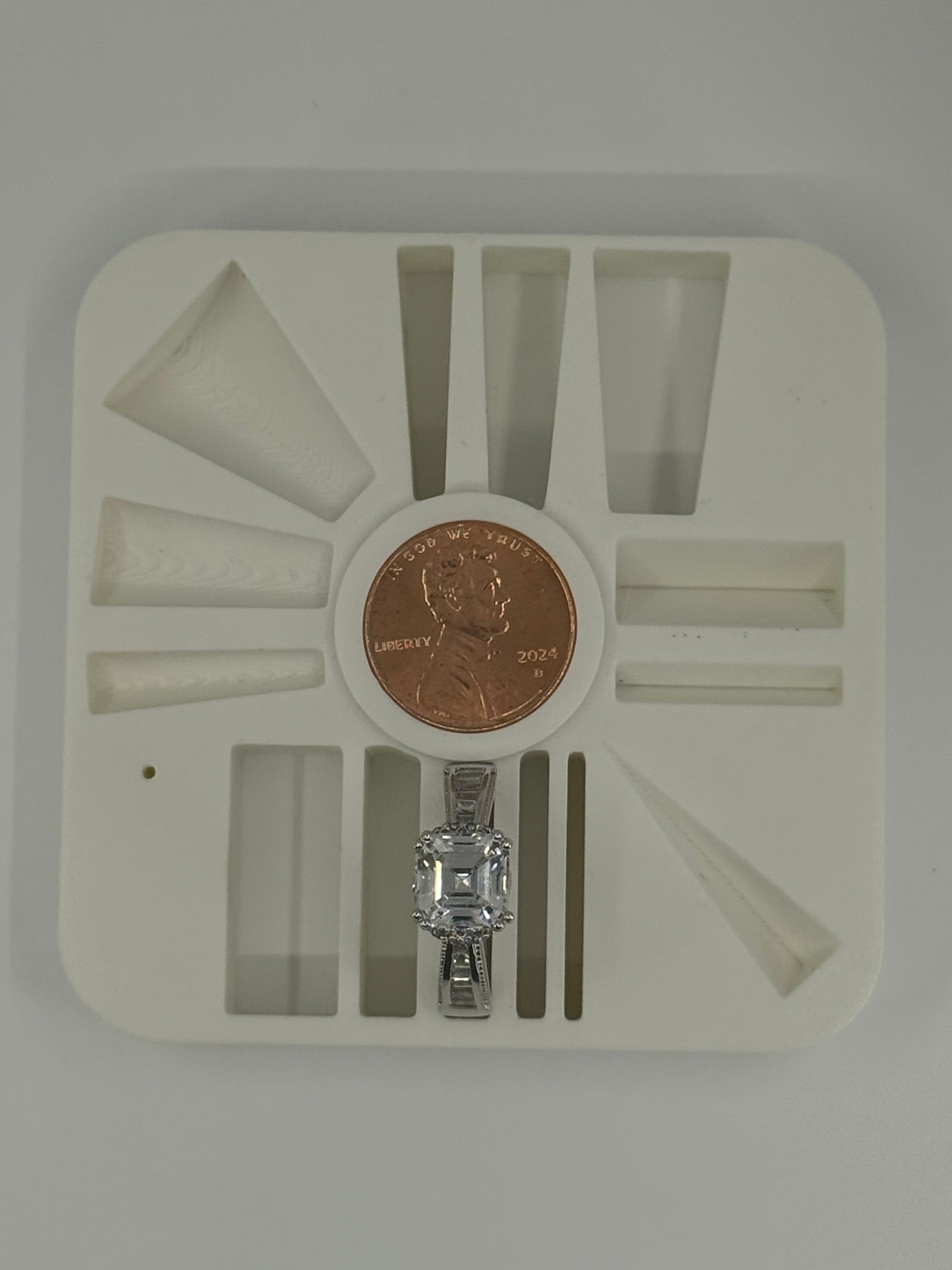

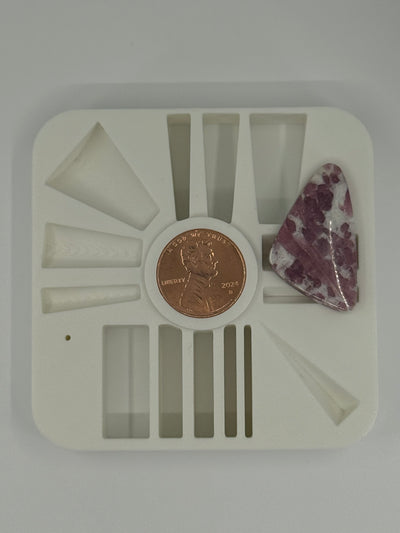

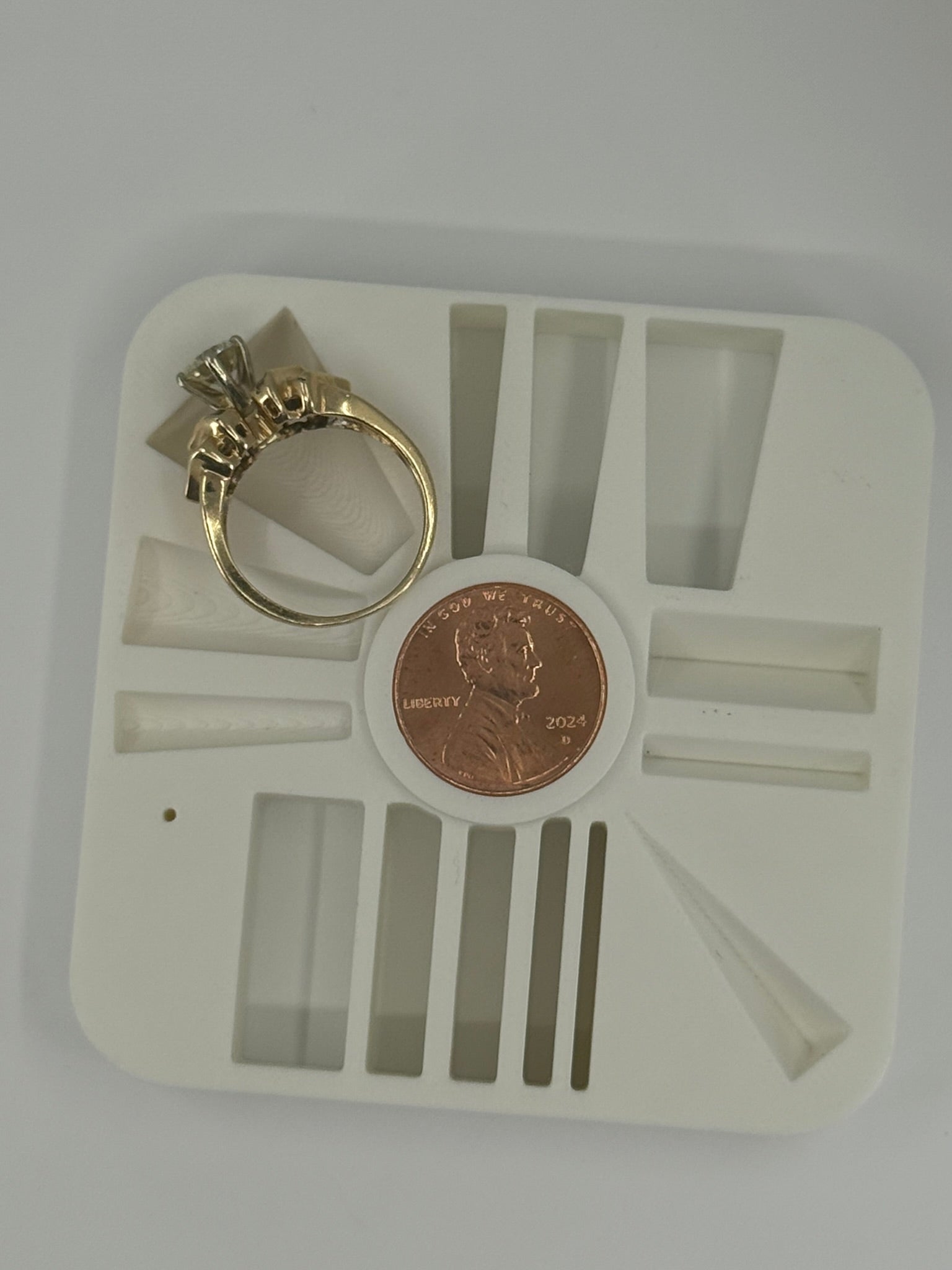

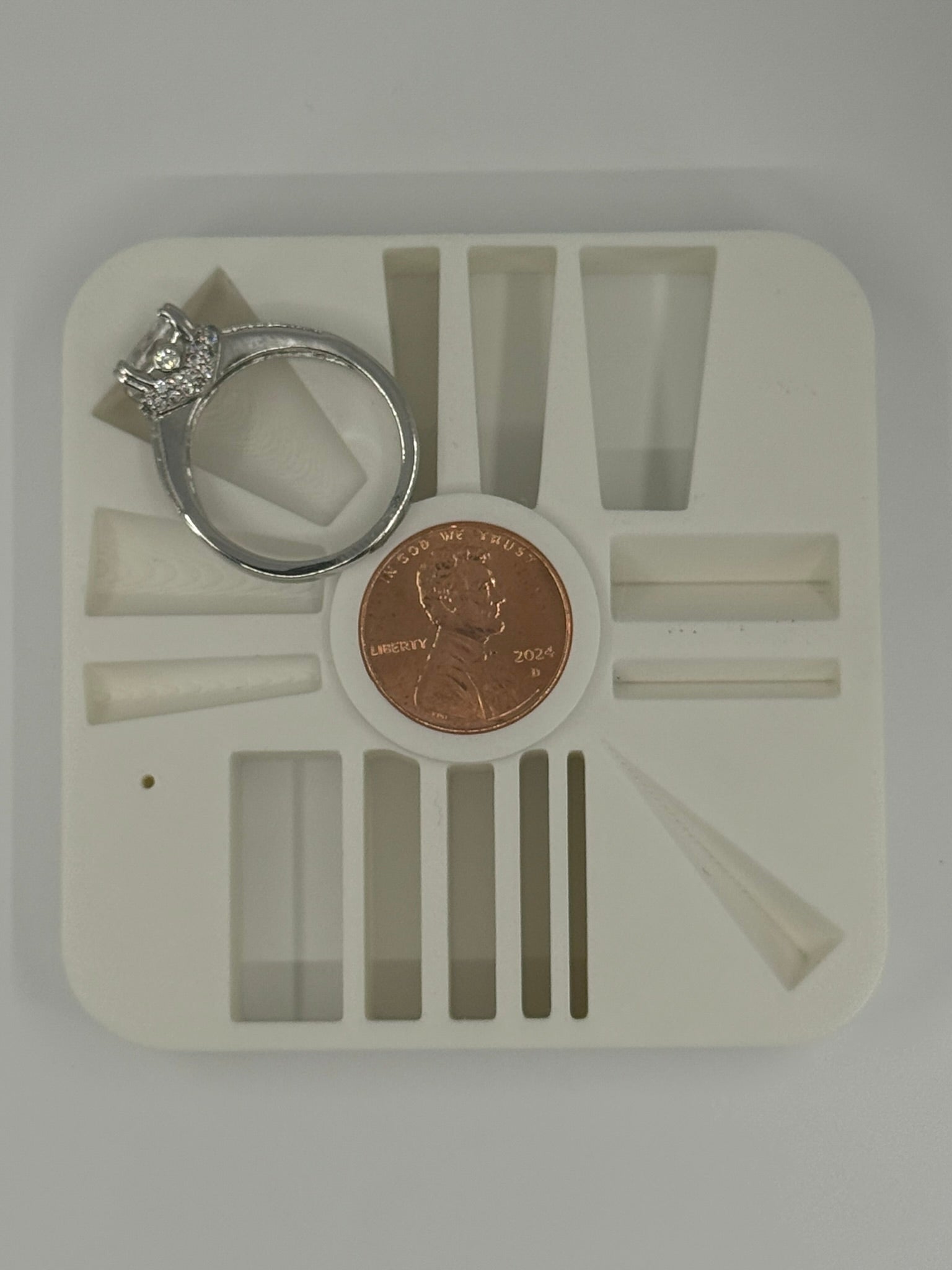

A 19.2 mm penny is used as a reference for scale. When importing into CAD, draw a 19.2 mm circle and align the penny within it for precise scaling.

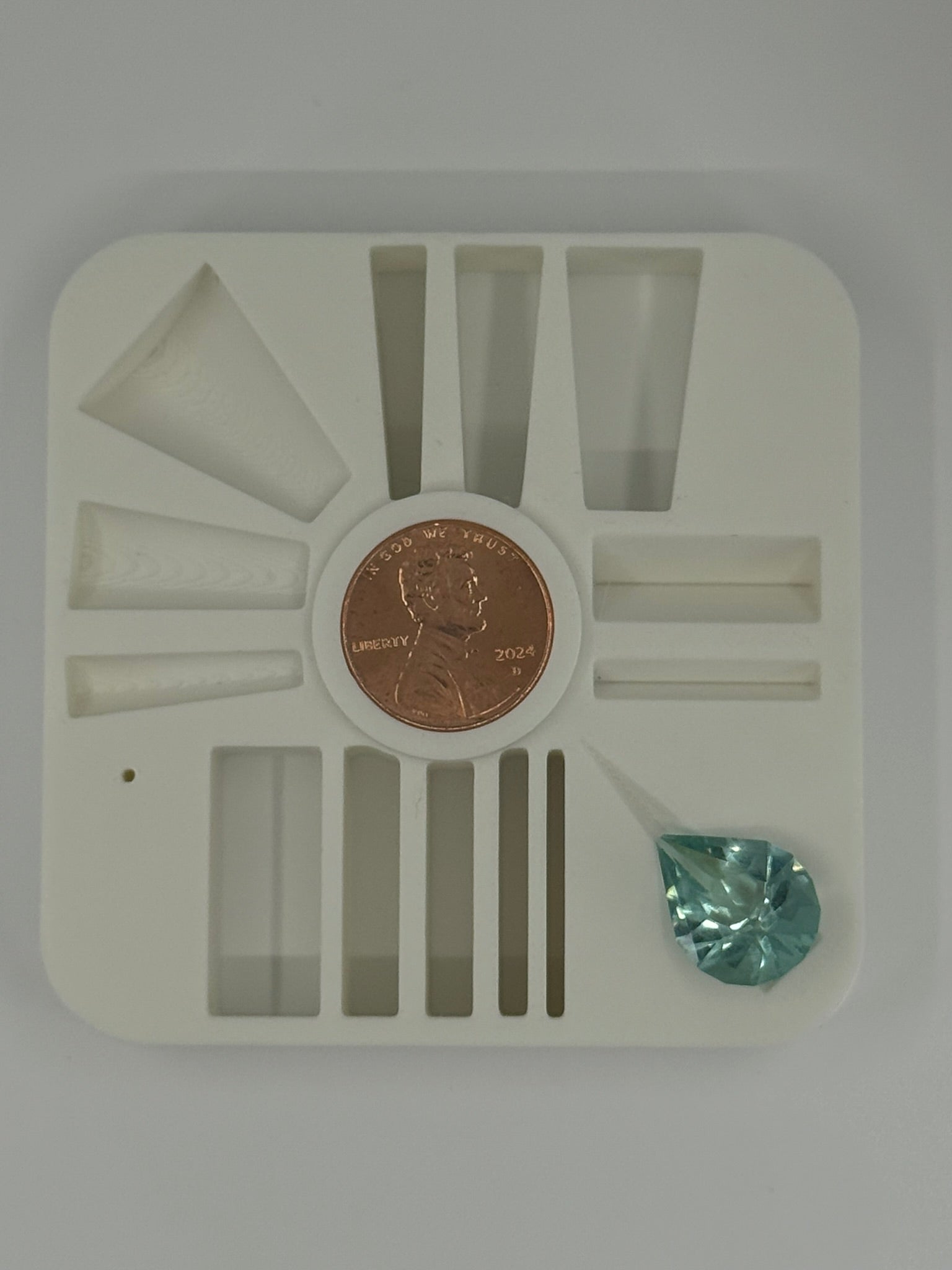

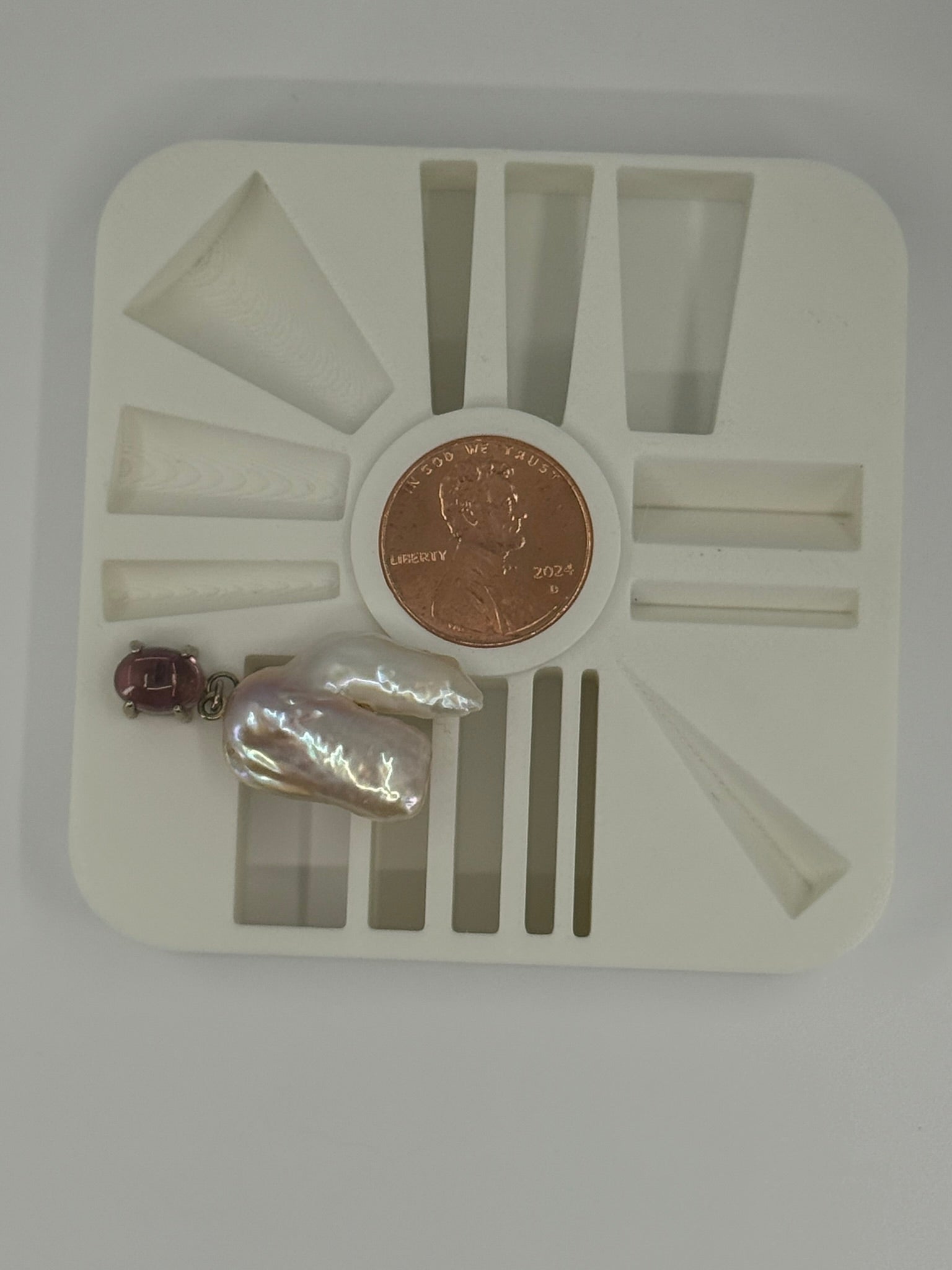

This method works especially well for fancy-shaped stones, irregular gems, and other unique objects.
